Product Description
High-Power Integrated Base Station (CBRS)
High-power Integrated Base Station
Product Description
In the 5G access network, the integrated high-power base station adopts an integrated design with
BU and RU integrated into one, supporting PON backhaul, and providing a low-cost, convenient, and
fast-deployed single-point blind filling coverage solution that does not require supporting
equipment rooms.
The integrated high-power base station adopts a separate design of digital board and radio
frequency board to facilitate frequency modification. It is compatible with multiple standards and
supports flexible networking. It can be used as a DAS indoor signal source and can also be
connected to an external RU to achieve indoor and outdoor coordinated coverage.
Features of Product
- Low Cost: Adopting ARM platform baseband solution
- High Transmitting Power: 4*5W
- Flexible Deployment:
- Supported Spectrum: N78 (3300-3700MHz), N77 (3700-4200MHz)
- Separate design of digital board and radio frequency board for easy frequency modification
- Connecting up to 4 RUs to achieve 5-point coverage expansion
- Capable to be used as DAS indoor signal source
- Compatibility with multiple formats:
- Compatible with multiple FDD formats
Product Specifications
Appearance

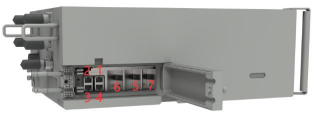

External Interface
| ID |
Interface |
Type |
Description |
| 1 |
MGMT |
RJ45 |
Local maintenance electrical port |
| 2 |
CONSOLE |
RJ45 |
Maintain serial port locally |
| 3 |
RGPS |
RJ45 |
RGPS interface |
| 4 |
ETH |
RJ45 |
1G backhaul electrical port |
| 5 |
BH |
SFP+ |
Backhaul, supports 1G/2.5G/10G |
Indicator Light
| Indicator Light |
Color |
Status |
Description |
| Power |
Green |
Off |
No power input or device failure |
|
|
On |
With power input and the device operates normally |
Product Indicators
System Level Indicators
| Indicators |
Value |
| Supporting band |
N78: 3300-3700MHz, N77: 3700-4200MHz |
| Operating bandwidth (IBW) |
TDD: 30KHz 10/50/100MHz |
Hardware Indicators
| Indicator |
Value |
| Operating Voltage |
220V AC (90V-285V) |
| Dimension |
≤12L |
